Product Overview

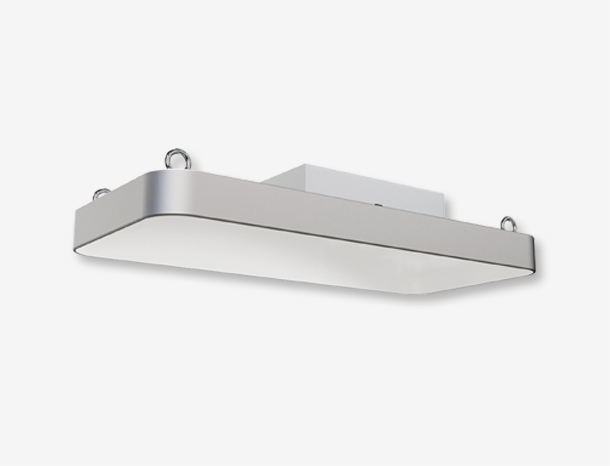

The CL521 is a high-performance RFID ceiling-mounted access control system compliant with ISO18000-6C, operating at GB 920MHz～925MHz and FCC 902MHz～928MHz with adjustable output power (0dBm～33dBm). Featuring a high-gain narrow-beam antenna, it offers long-range detection, multi-tag reading, strong anti-interference, and easy installation. Its ceiling-mounted design (up to 3.5m height) suits apparel retail, library management, personnel access control, and smart warehousing. The built-in Linux OS supports offline data caching and auto-upload for secure data management.
Performance Parameters
Equipment Dim | 480* 220* 70mm（(Excluding Bracket)） |
Net Weight | 2.5kg（(Excluding Bracket)） |
Housing Material | Aluminum + ABS |
Power Supply | AC 220V±10% 47～63 Hz |
Power Consumption | Approx. 45W |
Operating Environment | Temperature: -10-50℃ Humidity: 5-95%RH, non-condensing |
Storage Environment | Temperature: -20-55℃ Humidity: 5-95%RH, non-condensing |
Product Overview
The CL511 is a cost-effective RFID anti-theft access control system supporting EPC C1 G2 (ISO18000-6C) protocol. It integrates a high-gain antenna array and a high-speed reader module based on Impinj R2000/E710, with standard RS232 or RJ45 interfaces for seamless software integration. Ideal for logistics, warehousing, libraries, archives, and personnel attendance management, it features a horizontally narrow-beam antenna design for precise coverage (up to 2.2m) and multi-tag reading with a miss rate below 1%.
Performance Parameters
Equipment Dim | 1400*370*55mm(per panel) |
Net Weight | Main gate 12kg / Auxiliary gate 10.5kg |
Housing Material | Aluminum Profile + ABS |
Power Supply | AC 220V±10% 47-63 Hz |
Power Consumption | Approx. 45W |
Operating Environment | Temperature: -20-60℃ Humidity: 5-95%RH, non-condensing |
Storage Environment | Temperature: -30-70℃ Humidity: 5-95%RH, non-condensing |
Product Overview
The CL522 is a high-performance UHF ceiling-mounted access control system compliant with EPC C1 GEN2/ISO 18000-6C, featuring adjustable output power (10dBm～30dBm). It excels in multi-tag reading, anti-interference, and scalability, with a sleek design for easy installation. Built-in alarm lights and buzzers ensure prompt and reliable alerts, making it ideal for retail environments like malls, apparel stores, and accessory shops.
Performance Parameters
Equipment Dim | 200* 575* 45mm |
Net Weight | 1.95kg |
Housing Material | Metal + ABS |
Power Supply | Power supply 9-24V, standard adapter 12V/2A |
Power Consumption | Standby: 1.76W / Operating: 16.2W |
Operating Environment | Temperature: -25-65℃ Humidity: 5-95%RH, non-condensing |
Storage Environment | Temperature: -45-85℃ Humidity: 5-95%RH, non-condensing |
Product Overview
The CL516 is a high-performance RFID anti-theft access control system employing UHF RFID technology. It supports rapid batch identification of RFID tags and features integrated audio-visual alarms with superior anti-collision capabilities. The system provides real-time monitoring of product movement to effectively prevent merchandise theft. When integrated with an RFID backend management system, it can additionally provide data support for inventory management. Primarily designed for application in fashion retail stores.
Performance Parameters
Equipment Dim | 1505*300*130mm(per panel) |
Net Weight | 14.5KG (Main Unit), 14KG (Slave Unit) |
Housing Material | Acrylic + ABS |
Power Supply | DC 5V+5% |
Power Consumption | 8W(MAX) |
Operating Environment | Temperature: -25-65℃ Humidity: 5-95%RH, non-condensing |
Storage Environment | Temperature: -40-85℃ Humidity: 5-95%RH, non-condensing |
Product Overview
The CL515 is a high-performance RFID anti-theft access control system employing UHF RFID technology. It supports rapid batch identification of RFID tags and features integrated audio-visual alarms with superior anti-collision capabilities. The system provides real-time monitoring of product movement to effectively prevent merchandise theft. When integrated with an RFID backend management system, it can additionally provide data support for inventory management. Primarily designed for application in fashion retail stores.
Performance Parameters
Equipment Dim | 1400*370*75mm(per panel) |
Net Weight | 10KG(per panel) |
Housing Material | Aluminum + ABS |
Power Supply | AC 220V±10% 47-63 Hz |
Power Consumption | Approx. 30W |
Operating Environment | Temperature: -10-60℃ Humidity: 5-95%RH, non-condensing |
Storage Environment | Temperature: -30-70℃ Humidity: 5-95%RH, non-condensing |
Product Overview
The CL512 is a high-performance RFID anti-theft access control system employing UHF RFID technology. It supports rapid batch identification of RFID tags and features integrated audio-visual alarms with superior anti-collision capabilities. The system provides real-time monitoring of product movement to effectively prevent merchandise theft. When integrated with an RFID backend management system, it can additionally provide data support for inventory management. Primarily designed for application in fashion retail stores.
Performance Parameters
Equipment Dim | 1540*385*120mm(per panel) |
Net Weight | 5.5KG (Main Unit), 5KG (Slave Unit) |
Housing Material | ABS |
Power Supply | DC 12V/3A |
Power Consumption | 8W(MAX) |
Operating Environment | Temperature: -25-65℃ Humidity: 5-95%RH, non-condensing |
Storage Environment | Temperature: -40-85℃ Humidity: 5-95%RH, non-condensing |
Product Overview

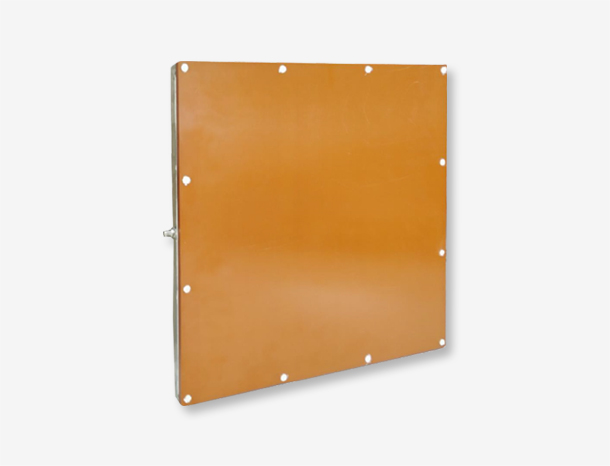

The CL021 is a high-performance UHF RFID embedded antenna designed for fashion retail environments such as apparel, footwear, and accessories. Its discreet installation preserves store aesthetics while delivering high gain and narrow beam characteristics for accurate RFID tag detection. Ideal for entry/exit management and inventory tracking, it combines seamless integration with reliable performance in high-end retail settings.
Performance Parameters
Equipment Dim | 500 *500 *36 mm |
Net Weight | 8.5kg |
Housing Material | Stainless Steel + Aluminum |
Operating Environment | -40-85℃ |
Storage Environment | -40-85℃ |
Antenna | >13dBi Circularly Polarized Antenna |
Frequency | 902MHz-928MHz |
Beamwidth | 35°x 35° |
Input Impedance | 50 ±1Ω |
Connector Type | SMA-K |
Operating Mode | Antenna cannot operate alone; requires a 4-port or 8-port reader + feeder cable for operation |
Protection Rating | IP67 |
Product Overview
The CL510 is a cost-effective transparent RFID anti-theft access control system. Featuring an ultra-thin design with a perfect combination of transparent acrylic and ABS, it boasts a stylish appearance and easy installation. It supports EPC C1 G2/ISO18000-6C protocol, comes with a built-in Linux system, and integrates a high-gain antenna array and high-speed reader module. Standard RS232 or RJ45 interfaces are provided for seamless connection to software platforms. It is ideal for retail, libraries, archives, personnel attendance, and warehouse logistics management.
Performance Parameters
Equipment Dim | 1370*370*62mm(per panel) |
Net Weight | Main gate 16kg / Auxiliary gate 15.4kg |
Housing Material | Acrylic + ABS + Metal sheet |
Power Supply | AC220V±10% 47～63 Hz |
Power Consumption | Approx. 45W |
Operating Environment | Temperature: -20-60℃ Humidity: 5-95%RH, non-condensing |
Storage Environment | Temperature: -30-70℃ Humidity: 5-95%RH, non-condensing |
