RFID Channel Machine

Product Overview

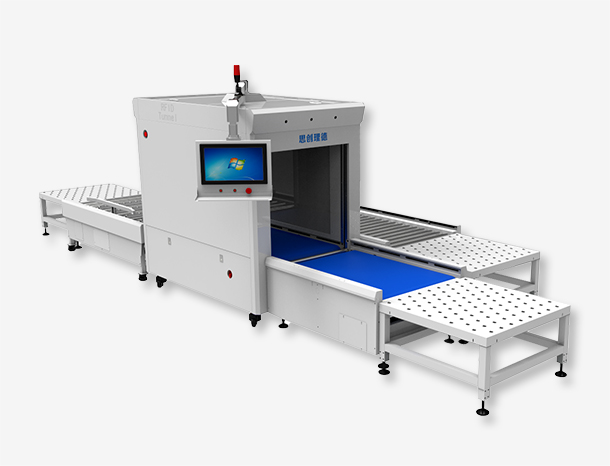

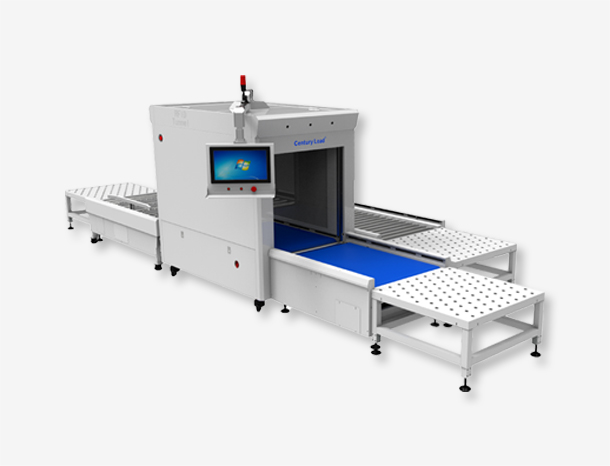

The CL900 is an industrial-grade RFID channel machine designed for efficient item-level identification in the fashion industry. It utilizes advanced technologies such as mechanical design, sensor coordination, electromagnetic shielding, and automation to eliminate common issues like missed or cross-reads. This device ensures rapid product flow while maintaining precise unique code management, which is essential for enhancing operational efficiency. The CL900 is particularly effective in managing inbound and outbound operations and conducting inventory counts for items like footwear, apparel, and accessories. By streamlining these processes, it significantly reduces labor costs and provides a robust solution for the digital transformation of the fashion sector.

Performance Parameters

Overall Dimensions	4100（L）*1130（W）*1750（H）mm
Internal Space	1500（L）*850（W）*850（H）mm
Front/Rear Conveyor	1200（L）*990（W）*500（H）mm
Max Case Dimensions	1300（L）*750（W）*830（H）mm
Weight	Approximately 500 KG (Main Channel)
Operating Voltage	220V AC（±10%）50±3Hz
Power Consumption	1000W
Housing Material	Carbon steel with powder coating
Shielding Distance	5-10cm
Optional Modules	Weighing/Scanning module
Operating Temp	-20°C to +60°C
Storage Temp	-10°C to 60°C
Humidity	20-95% RH (non-condensing)



Product Overview

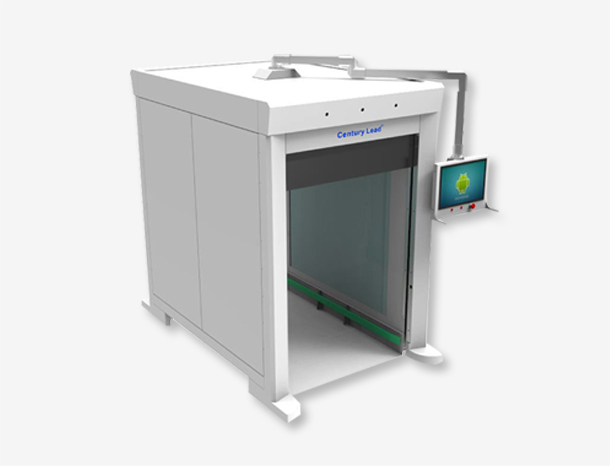

The CL920 RFID Pallet Tunnel is an industrial-grade RFID pallet-type gate device, centered on radio frequency identification (RFID) technology. It integrates advanced technologies including mechanical design, multi-sensor coordination, electromagnetic shielding, and automatic control to ensure rapid product flow while achieving precise unique code management. This significantly reduces labor costs and improves operational efficiency. Its industry focus is on item-level identification in the fashion sector, especially suited for fast inbound and outbound management and inventory counting of footwear, apparel, leather goods, and bags, providing an efficient solution for the digital transformation of the fashion industry.

Performance Parameters

Overall Dimensions	1970（L）*1680（W）*2260（H）mm
Internal Space	1800（L）*1400（W）*1800（H）mm
Max Case Dimensions	1700（L）*1300（W）*1700（H）mm
Weight	Approximately 700 KG
Operating Voltage	220V AC（±10%）50±3Hz
Power Consumption	200W
Housing Material	Carbon steel with powder coating
Shielding Distance	10-30cm
Optional Modules	Weighing module
Automatic Shielding Roller Door	Self-Weighted
Operating Temp	-20°C to +60°C
Storage Temp	-10°C to 60°C
Humidity	20-95% RH (non-condensing)



Product Overview

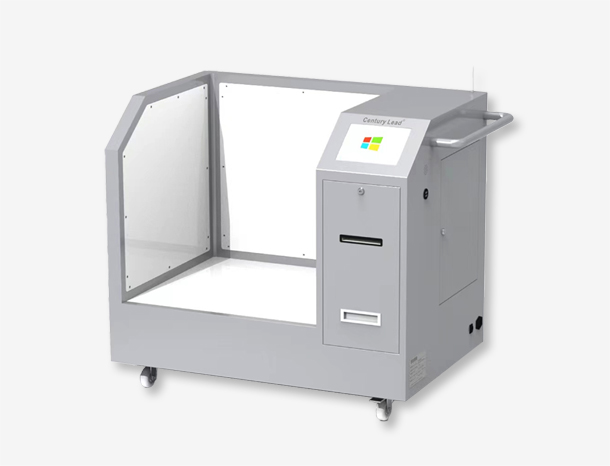

The CL960 RFID Inventory Cart is an industrial-grade RFID inventory Cart designed around Radio Frequency Identification (RFID) technology. It ensures rapid product flow while enabling precise unique code management. This device quickly inventories the information and quantity of goods within packaging boxes and prints box labels, facilitating sealing for operators and significantly improving inventory efficiency. Equipped with a 10.1-inch touchscreen display, printer, and built-in RFID equipment, it is primarily used in the fashion industry for item-level identification of full boxes of goods in factories and warehouses, such as rapid inbound/outbound management and inventory counting of clothing, shoes, leather goods, bags, and other items. It provides an efficient solution for the digital transformation of the fashion industry.

Performance Parameters

Overall Dimensions	1100（L）*750（W）*900（H）mm
Internal Space	730（L）*700（W）*685（H）mm
Weight	'Approximately 132 KG
Operating Voltage	220VAC（±10%）50±3HZ
Power Consumption	100W（MAX）
Casing Material	Sheet metal spray painting
Shielding Function	Dimple design, shielding on both sides and front
Operating Temp	-20°C to +55°C
Storage Temp	-20°C to 85°C
Humidity	5-95% RH (non-condensing)
