Handheld RFID Reader

Lightweight and portable, the RFID handheld offers exceptional performance, making it suitable for a variety of scenarios, including stores and warehouses. Equipped with a high-performance processor and anti-collision algorithms, it ensures efficient and stable tag recognition, enabling high-speed and stable transmission even in complex environments, with real-time data synchronization. It also supports barcode and QR code scanning, meeting diverse data collection needs with simple and efficient operation.

Schedule a demo

CL79

CL78

Handheld RFID Reader

Product Overview

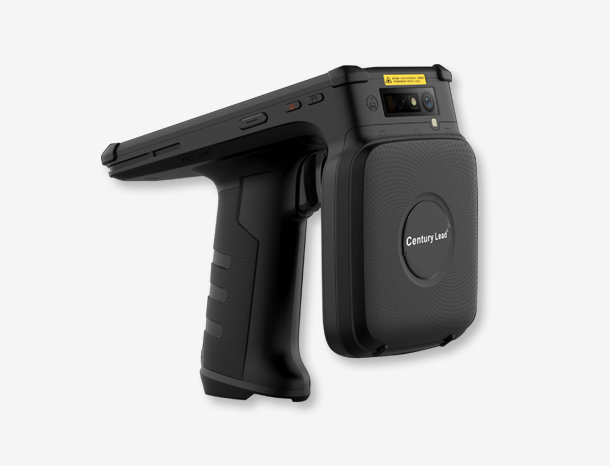

The RFID handheld CL79 is lightweight and portable with outstanding performance, suitable for various scenarios such as retail stores and warehouses. It features an octa-core 2.0 GHz processor and supports anti-collision algorithms to ensure efficient and stable tag recognition. Equipped with powerful Wi-Fi 6 technology, dual battery design, and IP67 industrial-grade protection, it guarantees high-speed and stable transmission even in complex environments, with real-time data synchronization. It also supports barcode and QR code scanning to meet diverse data collection needs, offering simple and efficient operation.

Performance Parameters

UHF	Antenna：Circular polarization;5dBi
	Protocol：EPC C1 GEN2/ISO 18000-6C
	Frequency：902-928MHz（default）/840-960MHz（custom-design for frequency band）
	Power：1-33dBm
	Speed：＞300sheets/sec
	Read Range：up to 10m
	Write Distance：0-6m
*Reading distance and speed depend on actual conditions
CPU	Octa-core, 2.0 GHz
RAM+ROM	4GB + 64GB (Optionally 6GB + 128GB)
Expansion	Micro SD Card, compatible up to 256GB
Operating System	Android 12
Card Slot	Supports simultaneous insertion of SIM card and TF card, with an optional PSAM (micro SIM) slot.
Interfaces	USB 2.0 Type-c，OTG
Equipment Dim.	159(H)x78(W)x133(T)mm （18mm）
Equipment Weight	580g (including battery）
Display	5.5 inches, capacitive touch
Charging & Battery	Bottom Type-C USB port with QC3.0 Removable 6700mAh handle battery
Keypad	1 power key,2 volume keys(+/-),1 UHF key，1 scan key，1 user-defined key
Sensor	Gravity sensor, light sensor,proximity sensor,electronic Compass, gyroscope
Operating Temp	-20℃ to +50℃
Humidity	5%RH-95%RH no condensing
Storage Temp	-40℃ to +60°C (including battery) -40℃ to +70°C (excluding battery)
Sealing	IP67
Drop Specification	2m

Product Overview

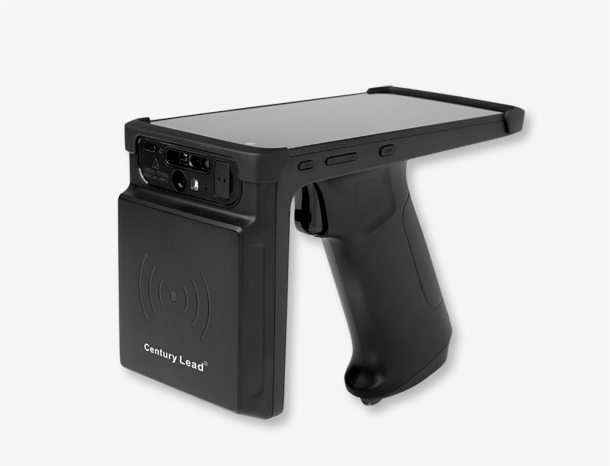

The RFID handheld reader CL78 features a lightweight and portable design, ideal for retail, warehousing, and more. Powered by an octa-core 1.8GHz processor, it handles multitasking smoothly. Equipped with anti-collision algorithms and precise distance adjustment, it achieves 200+ tags/sec high-speed group reading and 8m long-range identification, boosting efficiency. Advanced 5G dual-mode Wi-Fi ensures fast, stable data transfer. Dual replaceable batteries support 24/7 operation, while IP65 protection and a professional scanning engine with barcode/RFID capabilities meet high-intensity demands and complex environments.

Performance Parameters

UHF	Antenna：Circular polarization;4dBi
	Protocol：EPC C1 GEN2/ISO 18000-6C
	Frequency：902-928MHz（default）/840-960MHz（custom-design for frequency band）
	Power：1-33dBm
	Speed：＞200sheets/sec
	Read Range：up to 8m
	Write Distance：0-3m
*Reading distance and speed depend on actual conditions
CPU	Octa-core, 1.8 GHz
RAM+ROM	2GB+16GB/4GB+64GB
Expansion	Micro SD Card, compatible up to 128GB
Operating System	Android 11
Card Slot	micro SIM*1
Interfaces	USB 2.0 Type-c，OTG
Equipment Dim	156(H)x127.5(W)x79.5(T)mm
Equipment Weight	480g (including battery)
Display	5 inches, capacitive touch
Charging & Battery	Bottom Type-C USB port with QC3.0 Removable 6400mAh handle battery,providing over 3.5 hours of runtime
Keypad	1 power key,2 volume keys(+/-),1 UHF key，1 scan key，1 user-defined key
Sensor	Accelerometer, light sensor,proximity sensor,gyroscopee
Operating Temp.	-20℃ to +50℃
Humidity	5%RH-95%RH no condensing
Storage Temp.	-40℃ to +60°C (including battery) -40℃ to +70°C (excluding battery)
Sealing	IP67
Drop Specification	1.5m
